Nintendo Switch

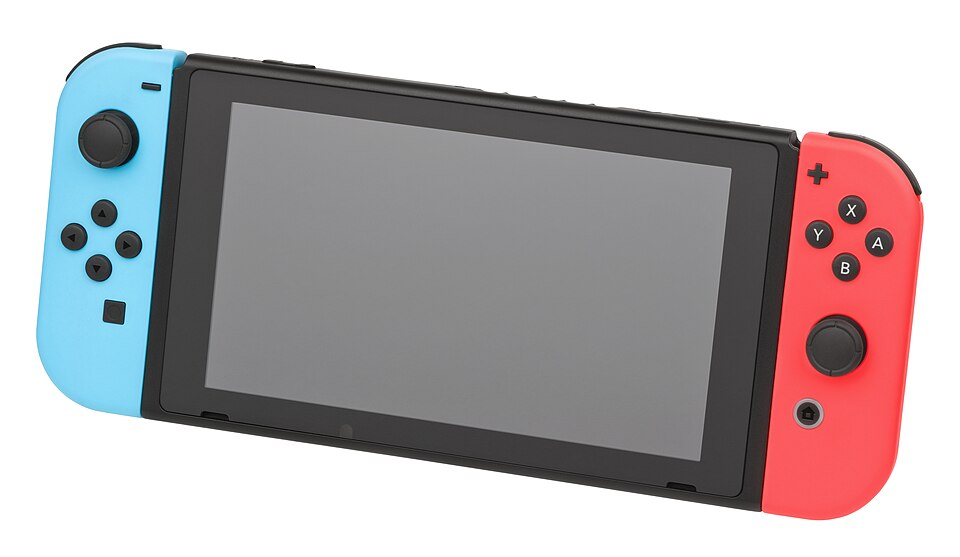

The Nintendo Switch is a hybrid video game console developed and released by Nintendo that transforms between a home console docked to a television and a portable handheld system in a snap.¹³¹⁴ Designed to fit a range of playing situations, it operates in three modes: a TV mode in which the console is inserted into a dock and output in HD to a television, a tabletop mode in which the built-in stand is flipped out to share the screen, and a handheld mode in which the detachable Joy-Con controllers stay attached to the unit and play on its 6.2-inch capacitive touch screen.¹³¹⁴

The console originated from a project Nintendo developed under the codename “NX”.²¹ At the time Nintendo had suffered from underperforming sales of the Wii U and 3DS?, and investors feared that the rising and more profitable smart-device gaming market would surpass or even replace dedicated game consoles.²¹ In earlier years the company had shown how quickly its hardware could dominate: the Wii?, launched in 2006, reached 50 million units faster than any home video game console in history, selling 25.95 million units in the fiscal year ending March 2009 and 50.39 million life-to-date.⁸¹² The Nintendo DS?, announced for a North American launch on November 21, 2004 at $149.99, likewise passed 100 million units faster than any prior console or handheld, reaching 101.78 million life-to-date by early 2009.¹¹¹² The Switch descends from a hardware line that began with the 1983 release of the Family Computer (Famicom) in Japan; across its history Nintendo has sold more than 6 billion video games and over 870 million hardware units, and built franchises including Mario, Donkey Kong, The Legend of Zelda, Pokémon, Metroid, Kirby, Animal Crossing, Pikmin, and Splatoon.²²

Hardware

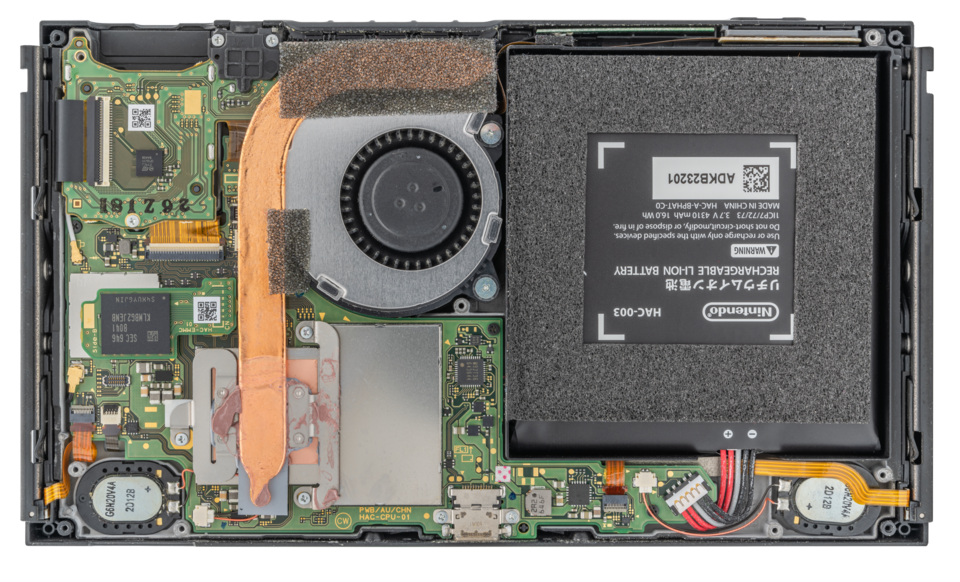

The console is built around a customized Nvidia Tegra X1 system-on-a-chip, whose specifications had been a known quantity since the processor debuted in 2015 in Nvidia’s Shield Android TV.⁵ Nintendo settled on conservative clock speeds: the CPU was locked to 1020MHz and the docked GPU frequency to 768MHz, both slower than the Shield, while in mobile mode the GPU originally downclocked to 307.2MHz.⁴⁵ Shortly before launch, Digital Foundry reported that Nintendo added a beefier 384MHz handheld performance mode, a 25 per cent increase over the original portable clock.⁵ Teardown photography of retail hardware revealed a 4310mAh, 16Whr battery occupying much of the internal space, 32GB of eMMC NAND storage on its own mini-daughterboard, a detachable MicroSD card reader, and a heat pipe with active cooling to draw heat away from the Tegra processor.⁵ Analysis of the teardown found build quality to be excellent, with the console held together by screws rather than the glue used in many contemporary smartphones and tablets, easing disassembly.⁵ In docked mode the GPU clocks generally rise by a factor of 2.5x over the handheld figure, with the fan kicking in to keep the processor from overheating.⁵

Over the console’s life, Nintendo selectively opened up additional performance to developers, with new clock options tending to appear first in its own games before reaching external studios.⁴ Handheld modes of The Legend of Zelda: Breath of the Wild, Super Mario Odyssey, and Mortal Kombat 11 saw GPU clocks raised to 460MHz — roughly a 20 per cent uplift over the 384MHz mode and a 50 per cent improvement over the original 307.2MHz option — with Mortal Kombat 11 the first third-party title to gain access.⁴ Nintendo also introduced a “boost mode” that temporarily overclocks the CPU to 1785MHz during loading, a 75 per cent increase on the stock clock, to speed up load times while the GPU idles at as little as 76.8MHz to balance thermals.³⁴ Booting Super Mario Odyssey took 28 seconds before the boost patch and about 20 seconds afterward, a 29 per cent decrease, while Breath of the Wild saw roughly seven seconds trimmed from the load into the Great Plateau.³⁴ Some titles, such as ports built on the id Tech 6 engine by Panic Button, adjusted GPU clocks dynamically in-game, one six-minute stretch of Doom registering 28 clock-speed changes.³⁴ Details of the console’s internal behavior became observable through modding: a homebrew overlay built on the Tesla framework exposed real-time frame rates, CPU and GPU utilization, temperatures, and fan speeds, confirming that Nintendo reserves one of the Switch’s four CPU cores for the operating system and front-end.³

Controllers and features

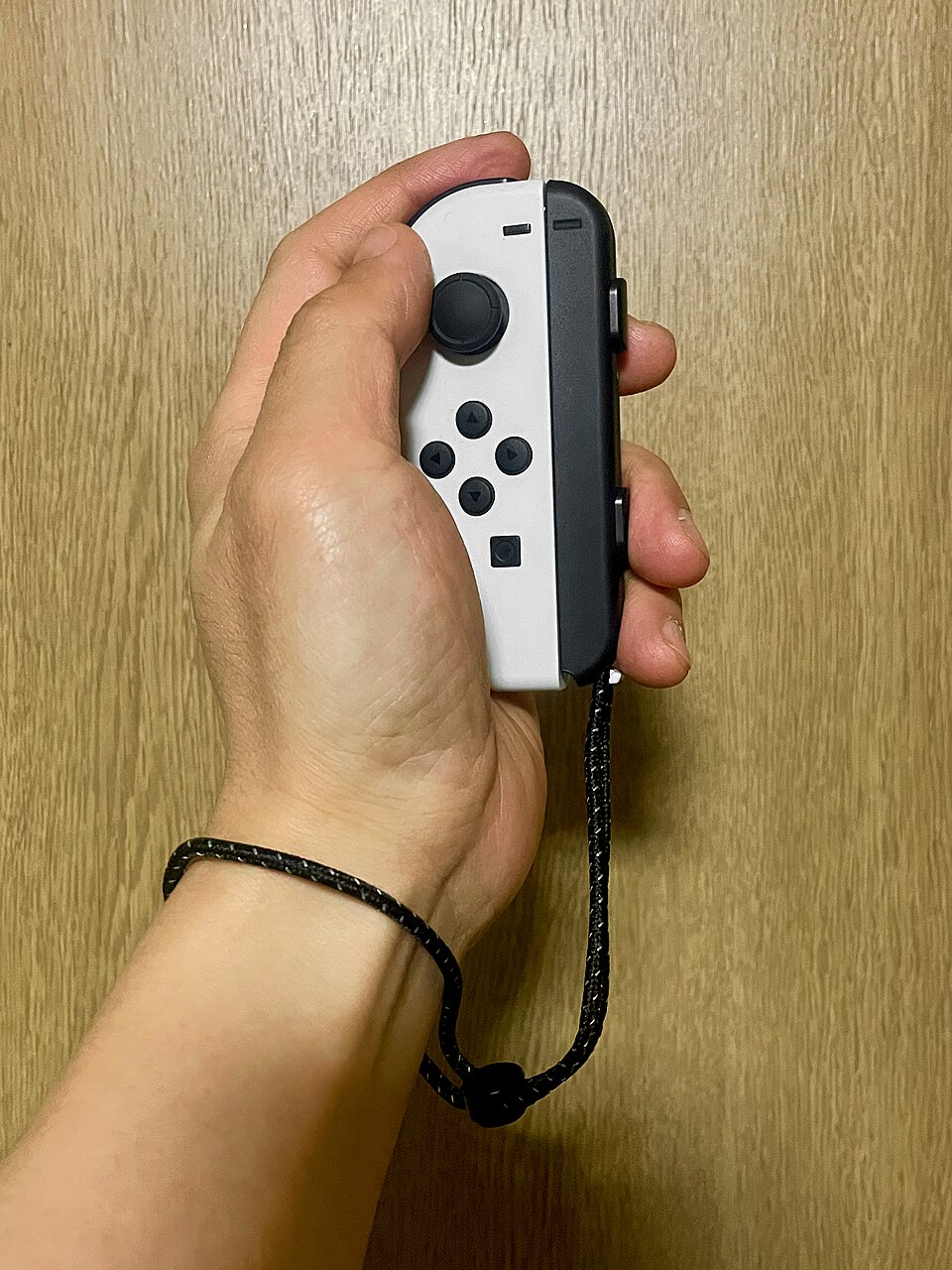

Each Switch ships with a pair of Joy-Con controllers that can be held vertically or horizontally, one in each hand, attached to the console, or separated.¹³¹⁴ The Joy-Con incorporate HD Rumble for physical feedback, an IR Motion Camera on the right controller capable of recognizing hand shapes such as rock-paper-scissors and calculating distance, and an NFC touchpoint for reading and writing amiibo data.¹⁴ A dedicated Capture Button records screenshots and video, which can be edited with text and shared to social networks or transferred to a smartphone, and an optional Pro Controller offers a more traditional gamepad.¹³¹⁴ The console supports microSD, microSDHC, and microSDXC memory cards for expanded storage, though microSDXC cards require a console update downloaded over the internet.¹⁴ The dock connects to a television by HDMI and to power by USB Type-C, and includes an additional USB port for accessories such as the Pro Controller or a Joy-Con charging grip.¹⁴

For multiplayer, up to eight Nintendo Switch family systems can be linked by local wireless play — used in games such as Super Smash Bros. Ultimate and Splatoon 2 — and online play is available in compatible games through a Nintendo Switch Online membership.¹³¹⁴ The HOME menu provides access to the Nintendo eShop, from which digital games and downloadable content are purchased, along with a news feed, an album for captured screenshots, and account and friend-list settings.¹³¹⁴

Software and reception

The Switch library grew to more than 5,000 games, spanning Nintendo’s exclusive franchises such as Super Smash Bros., The Legend of Zelda, and Mario Kart alongside third-party titles.¹³¹⁵ Flagship releases include The Legend of Zelda: Tears of the Kingdom, Animal Crossing: New Horizons, Mario Kart 8 Deluxe, Splatoon 3, Kirby and the Forgotten Land, and Super Mario Bros. Wonder.¹³¹⁵ The console thrived across two console generations, a span in which industry analysts noted that Nintendo no longer aligned its launch cadence with Sony’s PlayStation or Microsoft’s Xbox lines.¹²

The Switch is offered in several models: the original console, a Nintendo Switch Lite? dedicated to portable play, and a Nintendo Switch OLED Model with a vivid 7-inch OLED touchscreen and enhanced audio in handheld and tabletop modes.¹⁵ As of 2026 the original console retailed at $339.99, the Lite at $229.99, and the OLED Model at $399.99 in the United States.¹⁵ Nintendo continued to issue system software updates throughout its life, reaching version 22.5.0 on June 15, 2026.⁶ Its successor, the Nintendo Switch 2, launched at a $449.99 suggested retail price with games including Mario Kart World and Donkey Kong Bananza.¹⁹
